Setting up Linphone as a SIP "endpoint"

Intro

To be able to test out OVI functionality during development, a SIP capable endpoint device is required - like a conference system (HP/Poly, Cisco, LifeSize, Yealink, etc.) or you can use your PC with a SIP application like Linphone

This guide will help you setup Linphone, towards Synegy SKY Registrar.

Setting up

Download and install linphone, we would recommend the Version 5.x version as we have seen issues with the 6.x branch.

Download Page

Setting up Version 5.x (existing install)

Note

This will provide you with a Synergy SKY SIP trial account, and will reset existing setting in your linphone

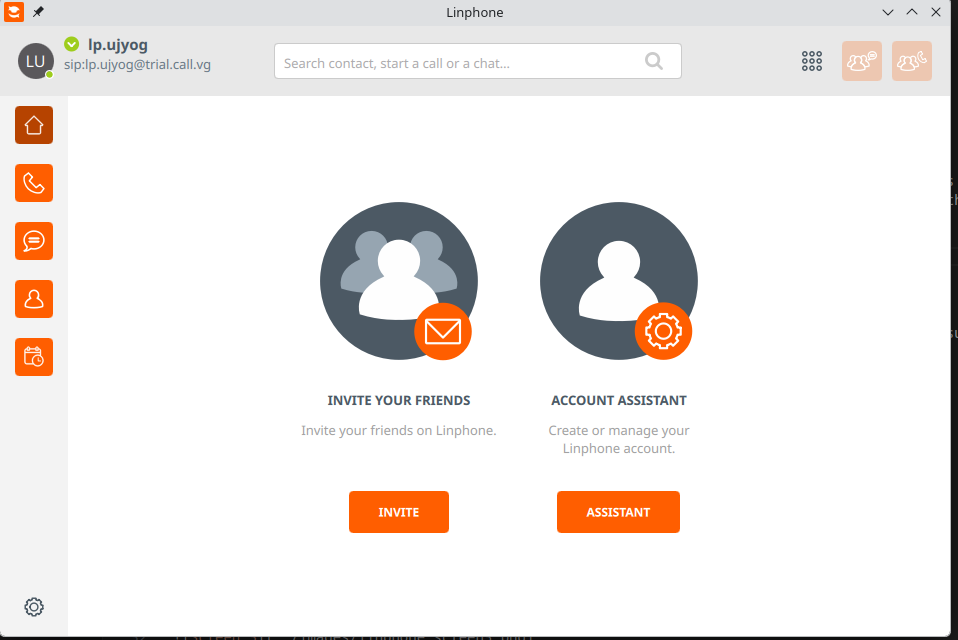

Screen 1

Press the "Assistant" button

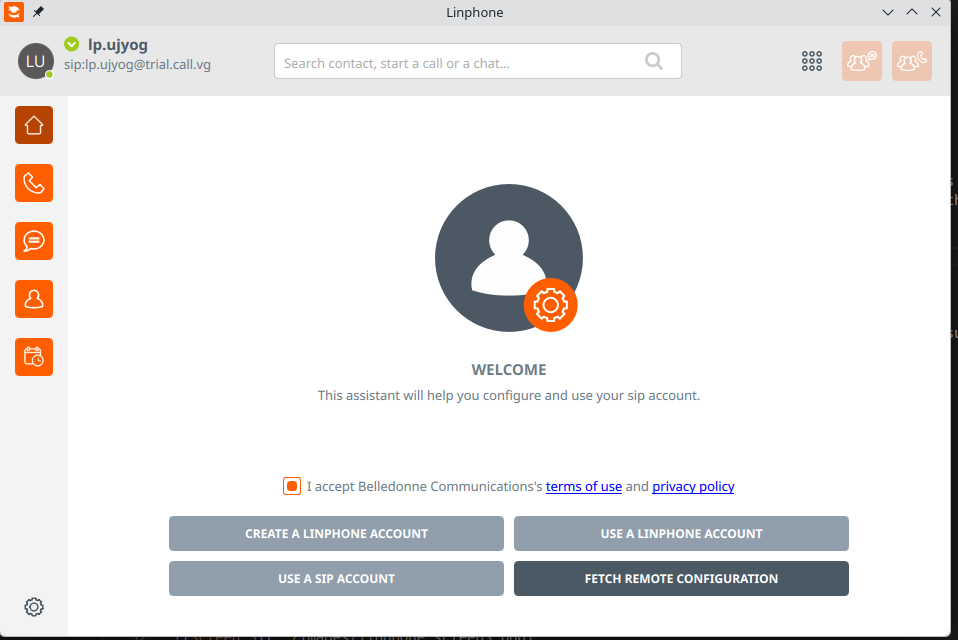

Screen 2

Press the "Fetch Remote Configuration" button

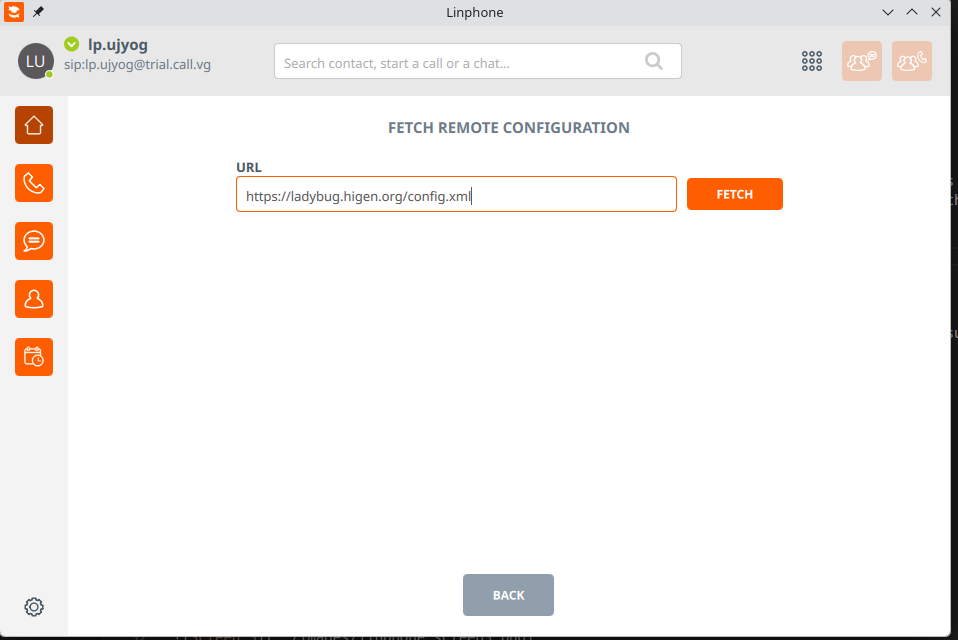

Screen 3

Fill in the URL: https://ladybug.higen.org/config.xml

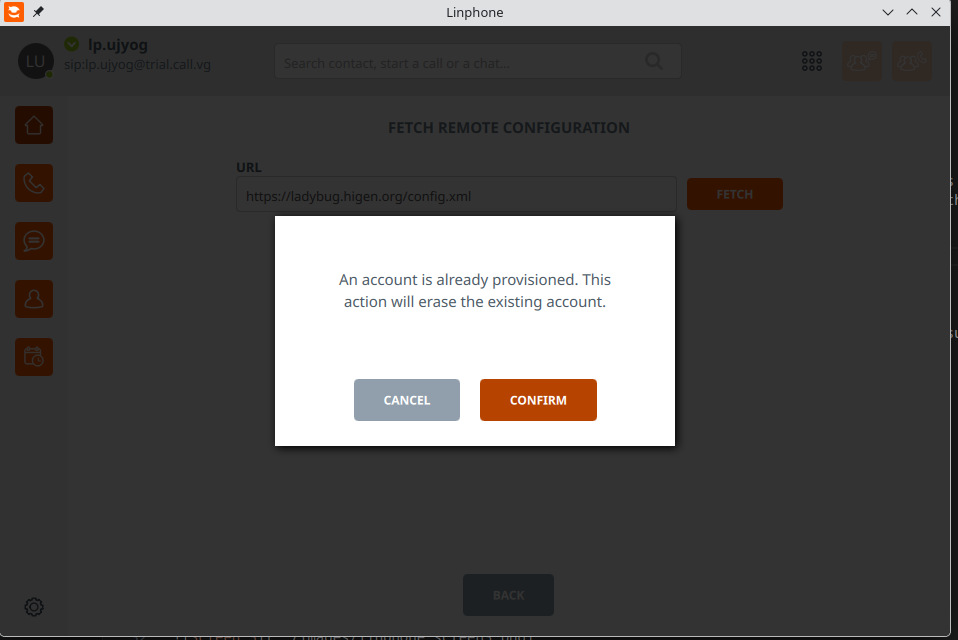

Screen 4

Confirm and allow to restart - this will reset existing configuration

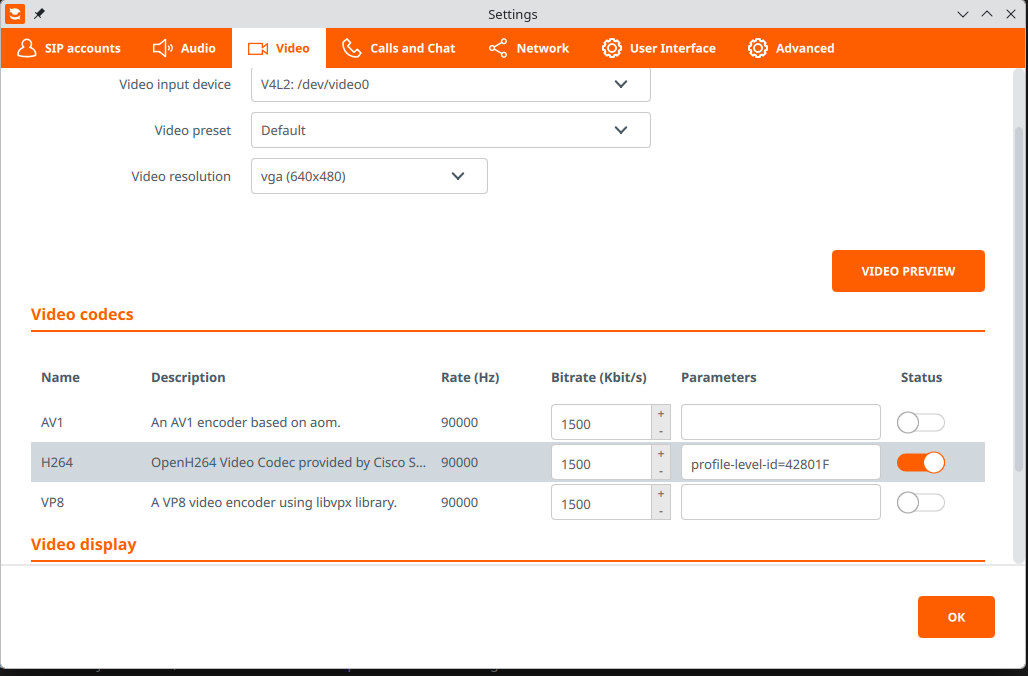

Screen 5

Select "Advanced Parameters" and ensure that

H264 is ON
VP8 is OFF
AV1 is OFF

Exit the settings and do a test call to the URI

o.test@qa.joingw.com

Settings up Version 6.x (fresh install)

STEP 1: Start the App Screen 1 Skip the wizard

Screen 2 Setup provisioning

Screen 3 Fill in the URL: https://ladybug.higen.org/config.xml

Note

This will provide an XML with a Synergy SKY SIP trial account

After this step the app will automatically restart, sometimes it ends up in the wizard again in that case, restart the appelication

Screen 4

Go into the applications settings

Screen 5

Select "Advanced Parameters" and ensure that

H264 is ON
VP8 is OFF
AV1 is OFF

Screen 6

Exit the settings and do a test call to the URI

o.test@qa.joingw.com

Screen 7

Your client is ready
